Standalone Coils

Select standalone coils around air and fluid requirements, refine construction, prepare drawings, bills of materials, and fabrication files.

See output examples
  • Standalone selection
  • 3D construction review
  • Fabrication drawings & CAD
XaiR standalone coil construction workspace and 3D assembly

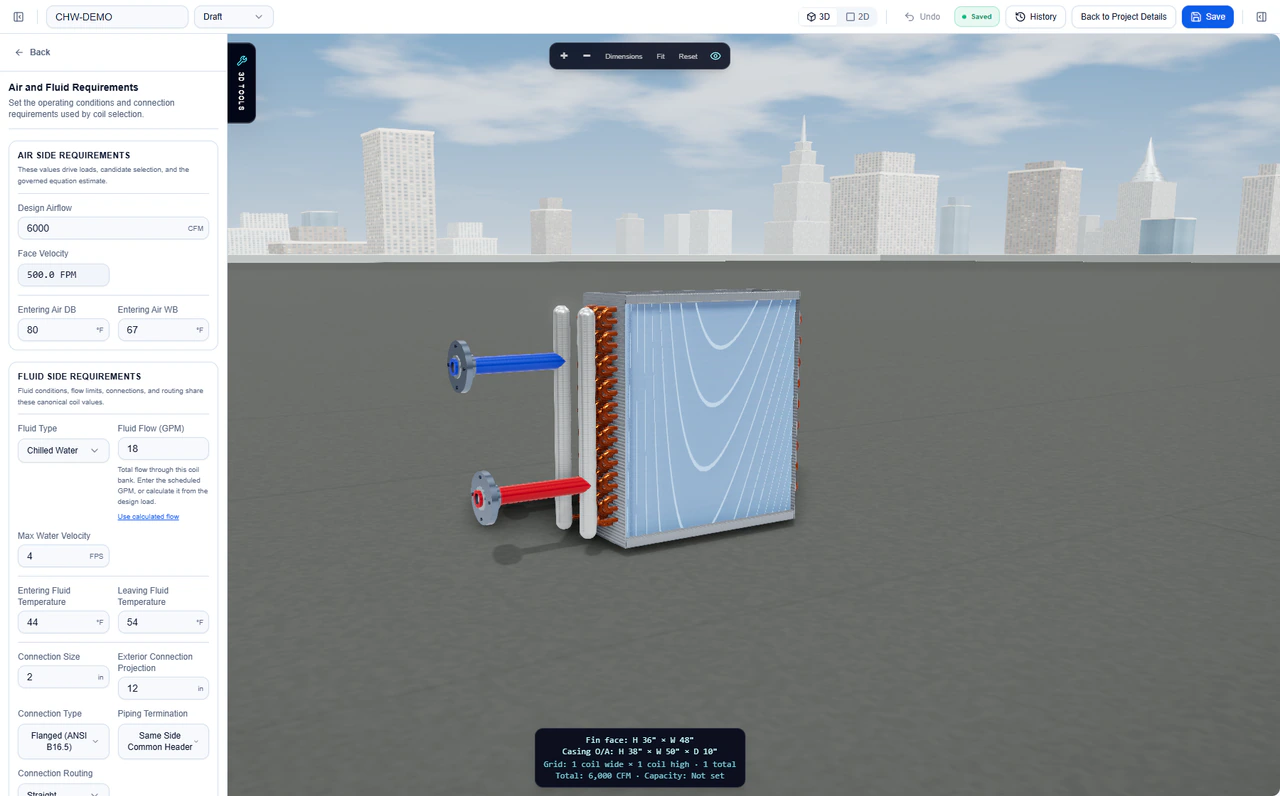

Current standalone coil air and fluid duty inputs beside the 3D assembly

Standalone Coil Selection

  • Define conditions and evaluate selections by capacity or leaving air temperature
  • Configure rows, fin density, tube geometry, circuiting, materials, casing, and connections
  • Inspect the coil assembly in 3D and review general arrangement drawings
  • Connect the configured coil to pricing, bills of materials, and manufacturing release

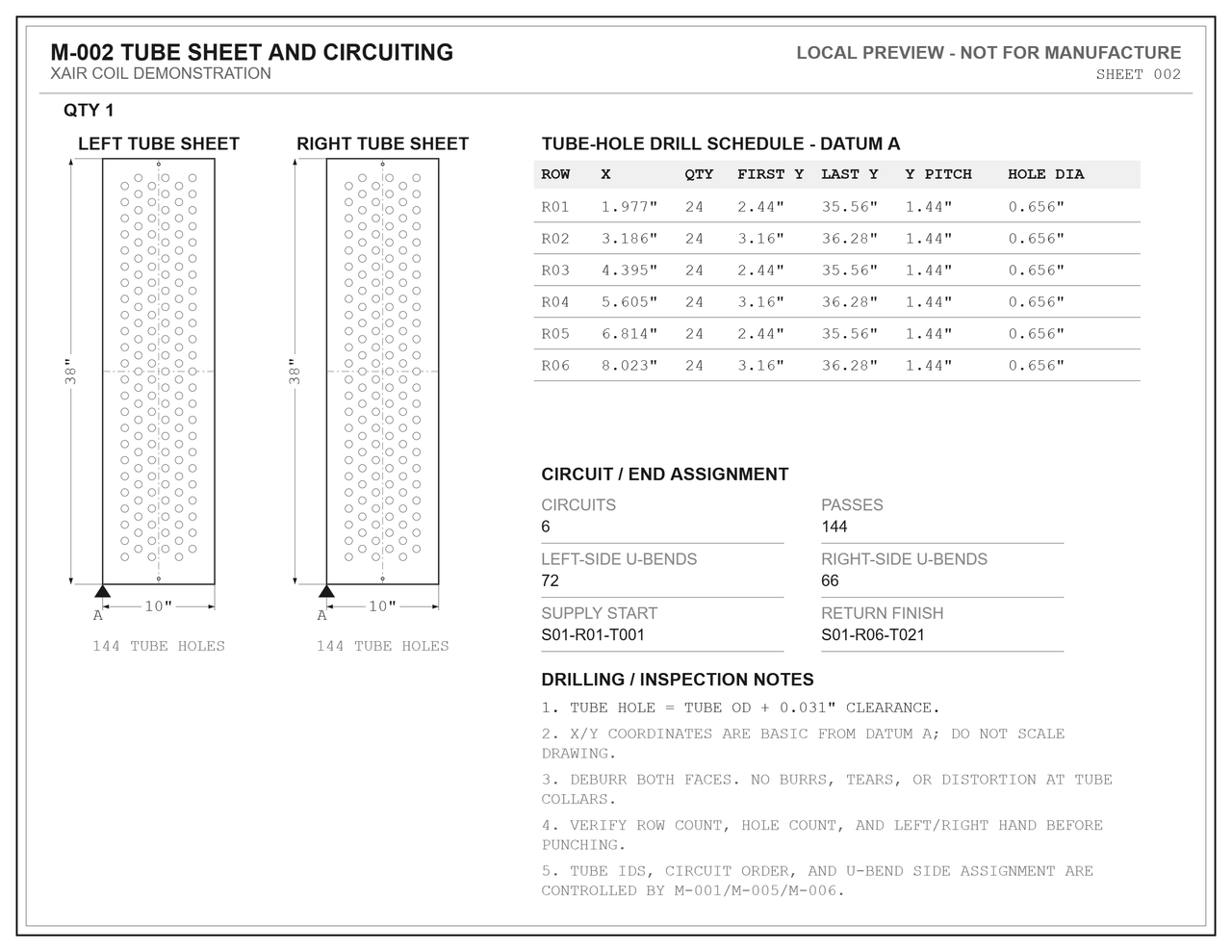

M-002 coil tube-sheet drilling and circuit-end assignments
1/3

Production & Manufacturing CAD

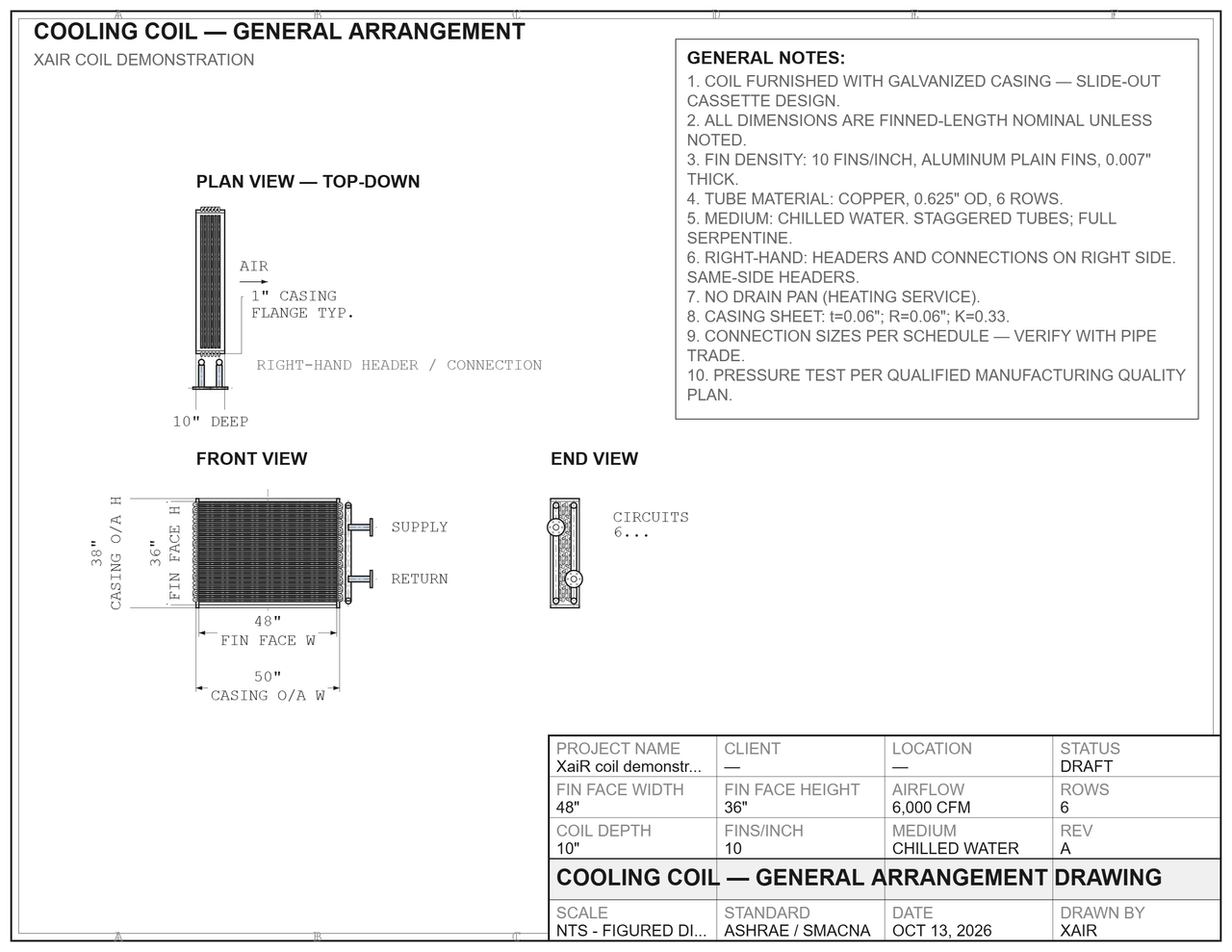

  • General arrangement and fabrication sheets covering coil dimensions, tube-sheet drilling, circuiting, casing bends, and header details
  • Bills of materials with part quantities and material references, including CSV output in the CAD package
  • DXF fabrication geometry for tube-sheet outlines and hole patterns
  • STEP assemblies with separate casing, tube, return-bend, header, and connection bodies
  • CAD ZIP packages containing STEP files, the bill of materials, and export metadata
  • STL models of configured coils for scaled 3D-printing prototypes
